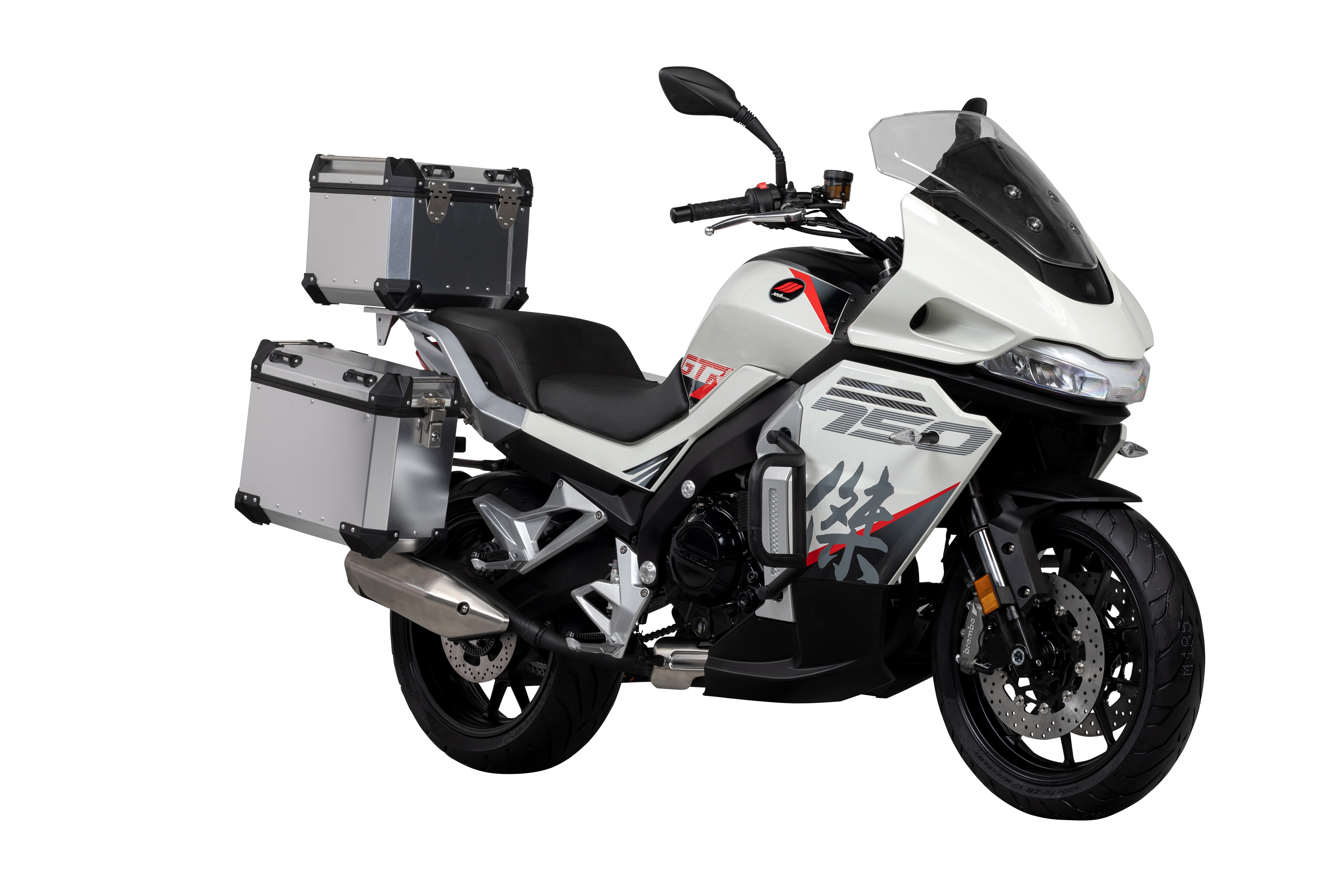

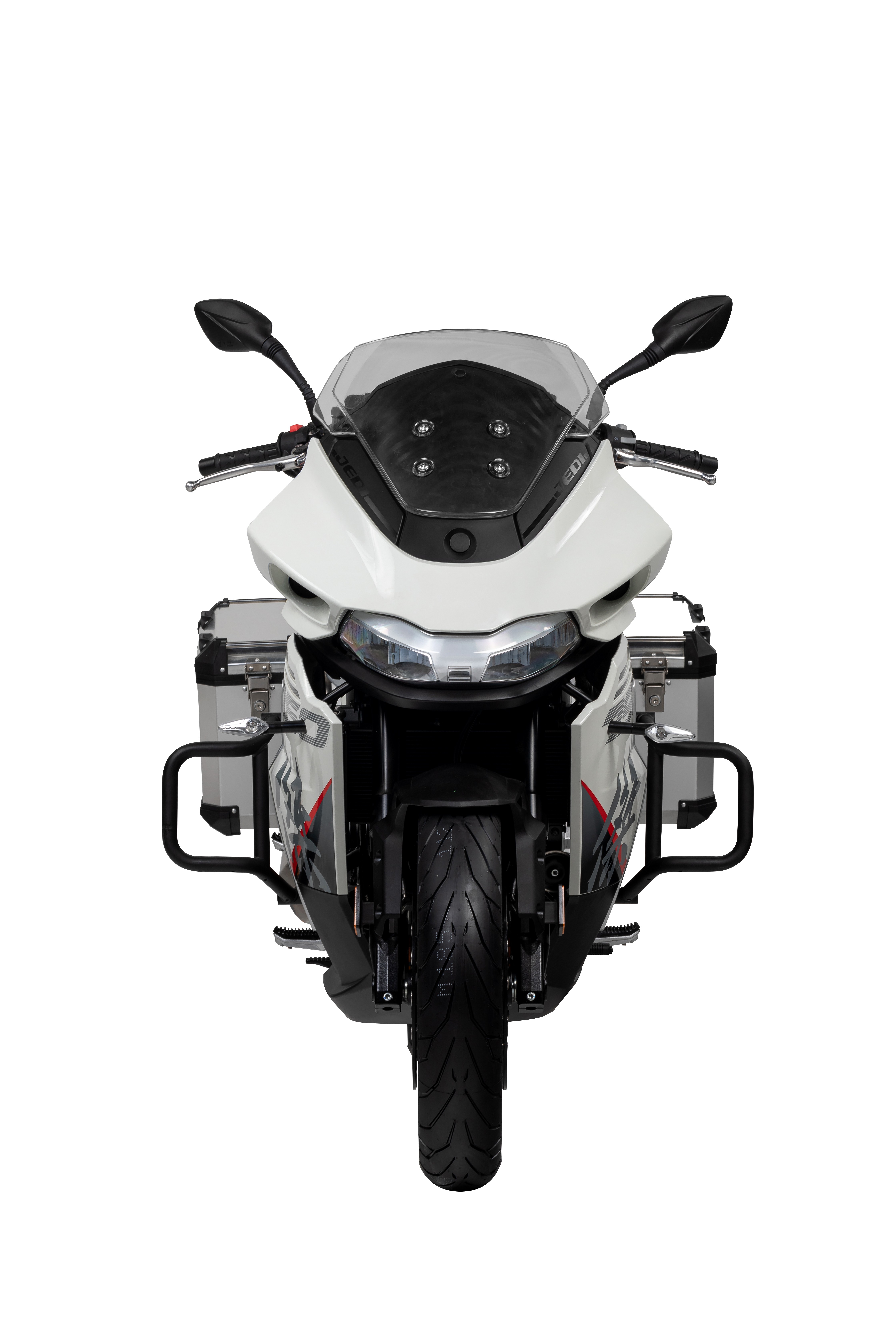

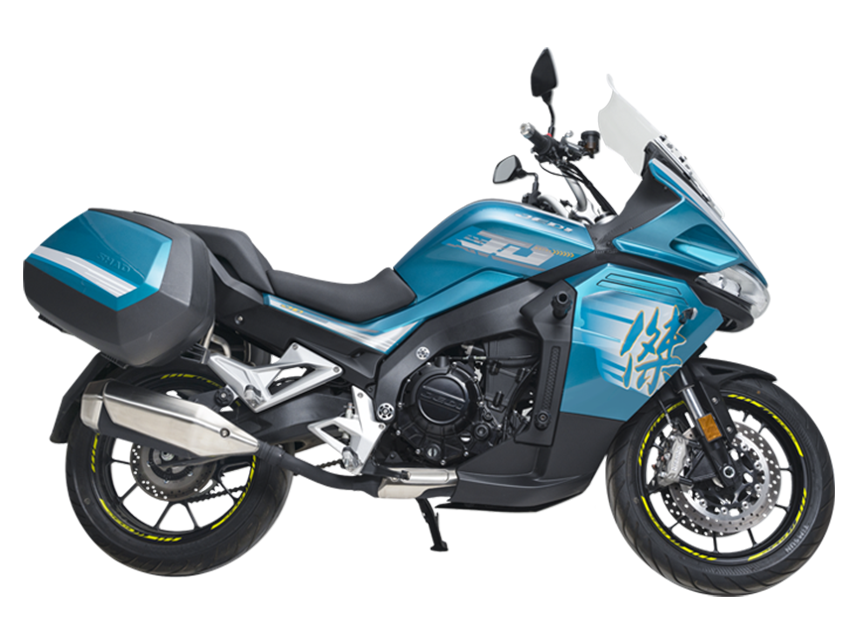

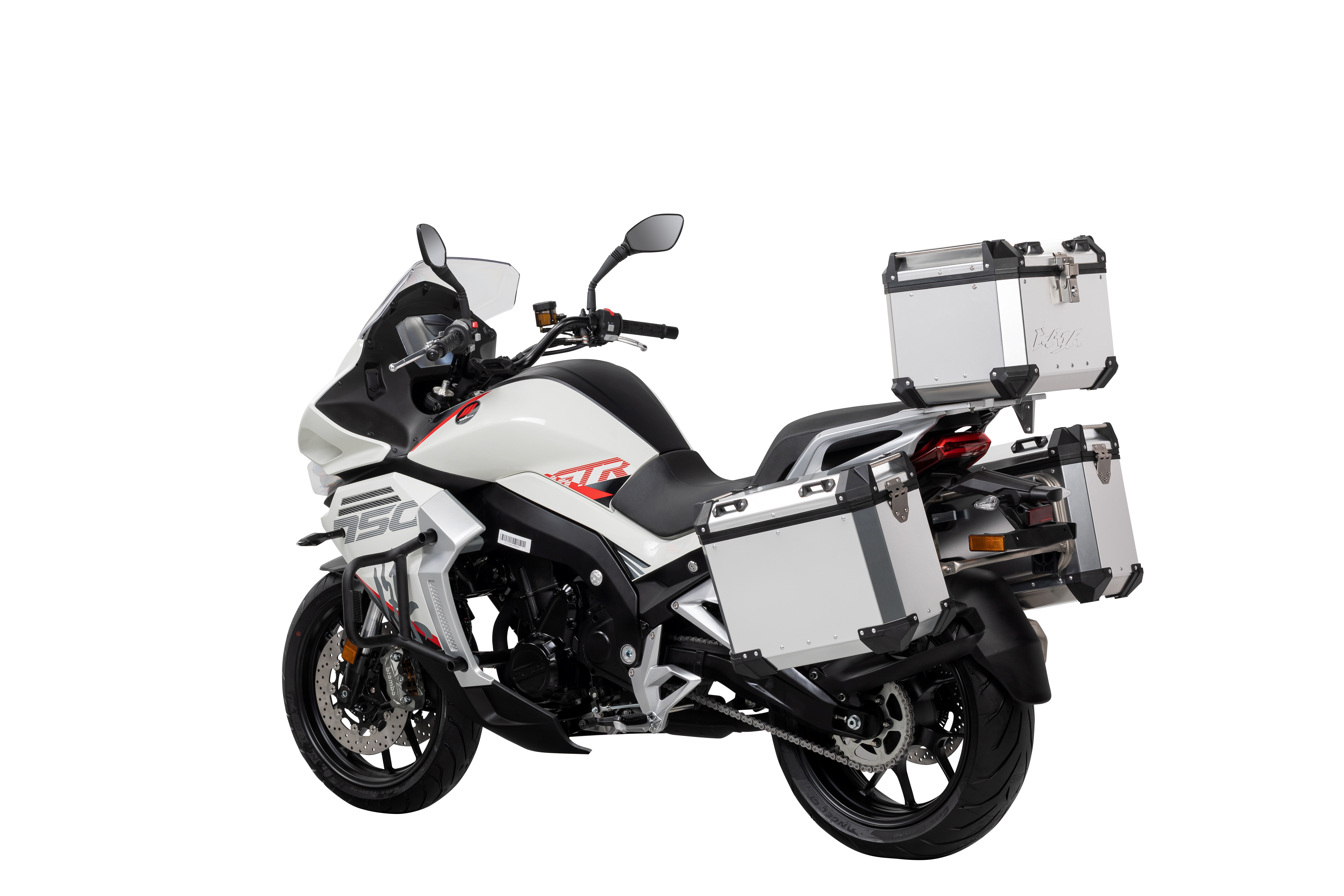

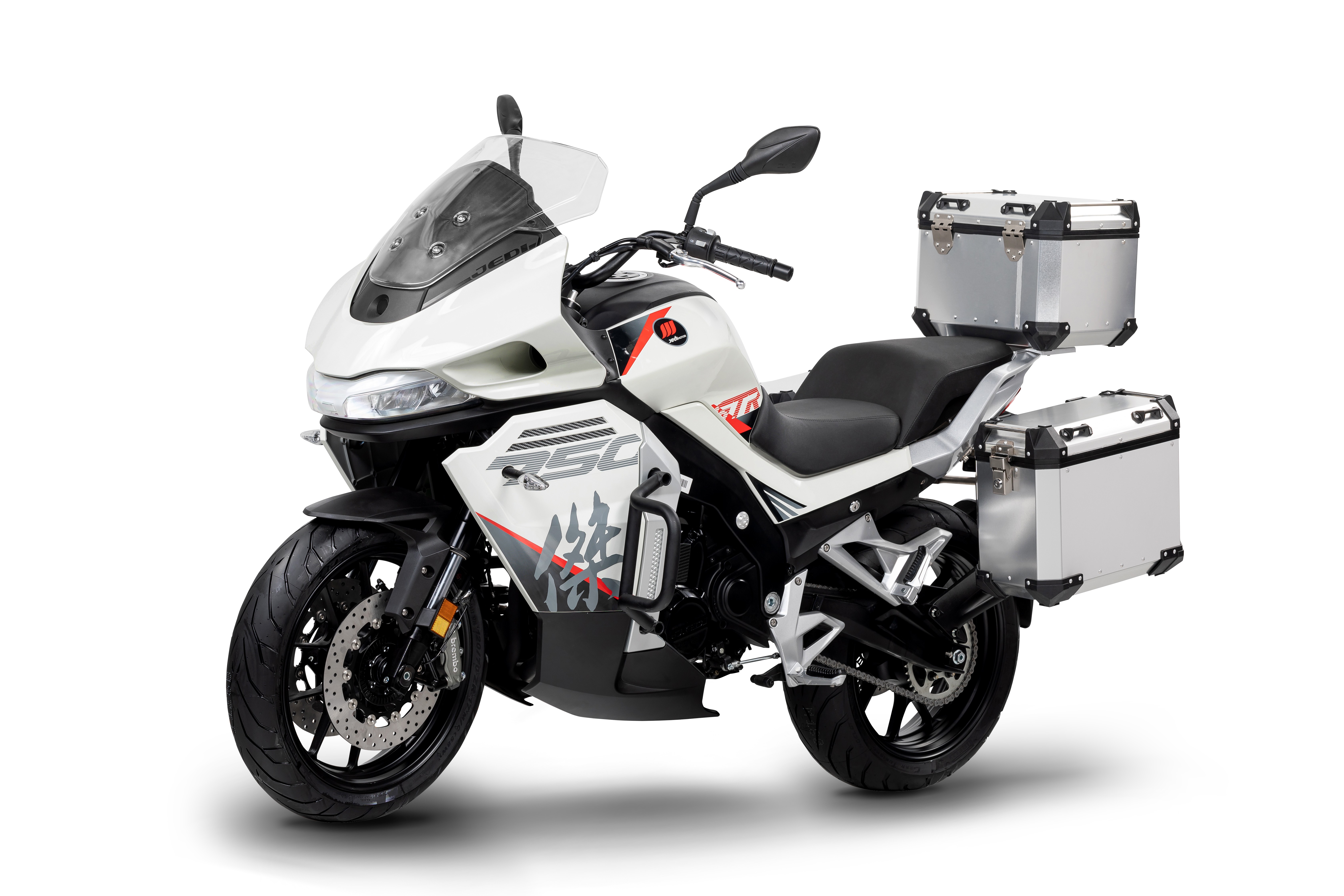

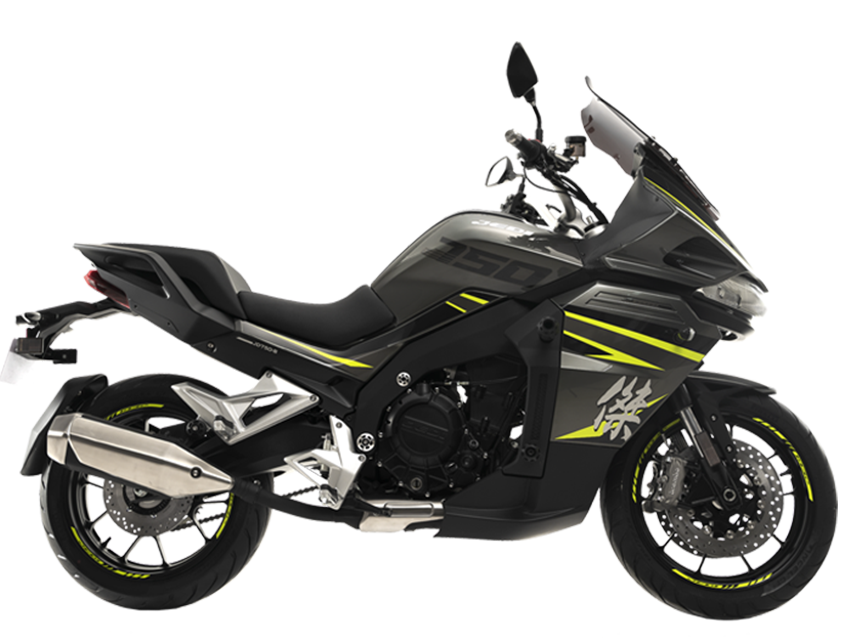

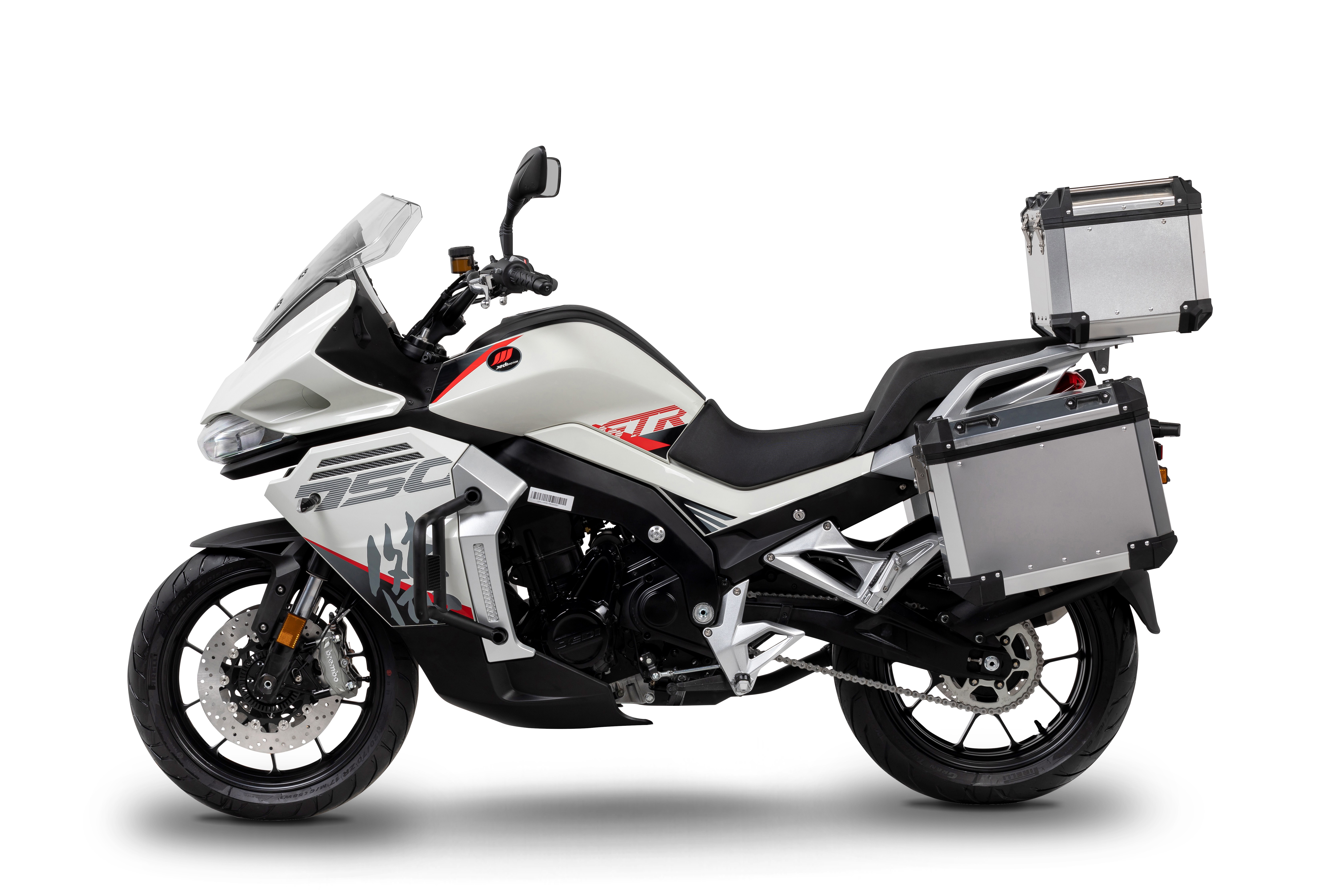

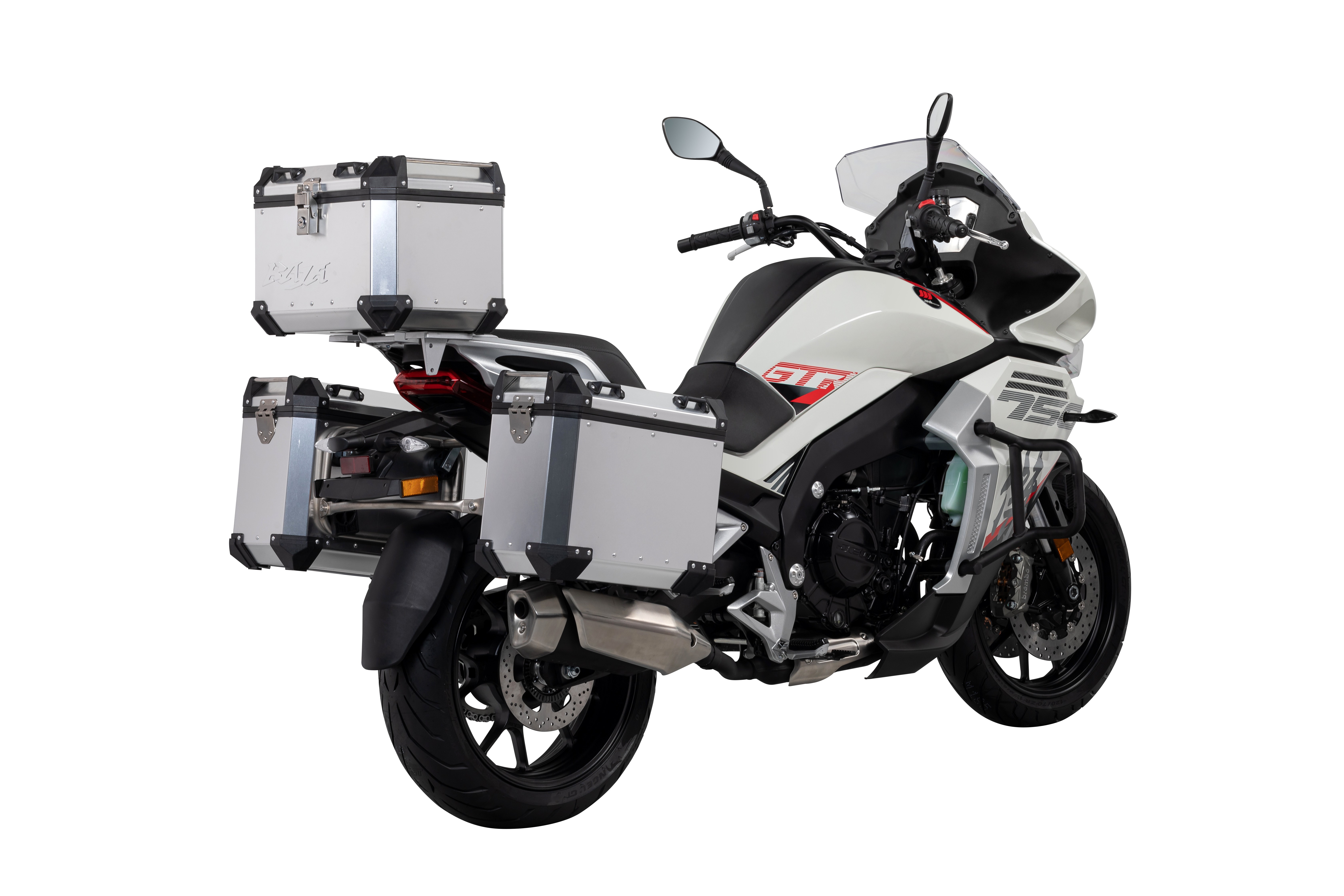

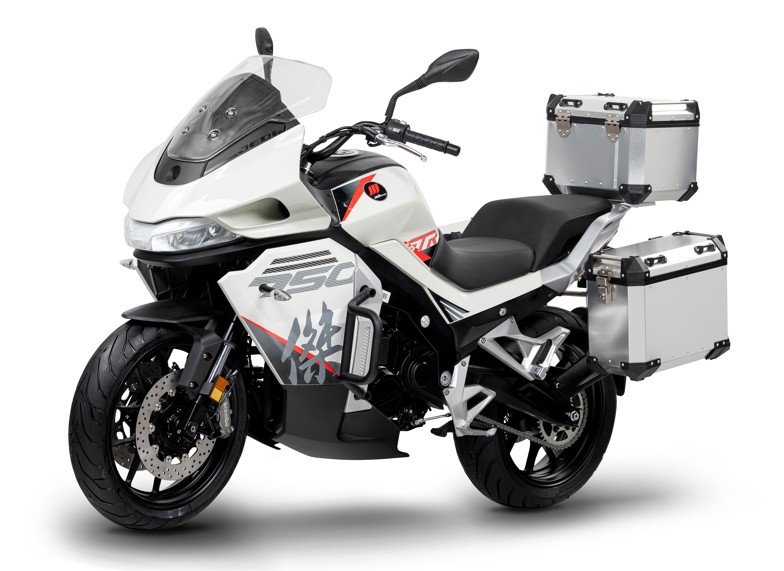

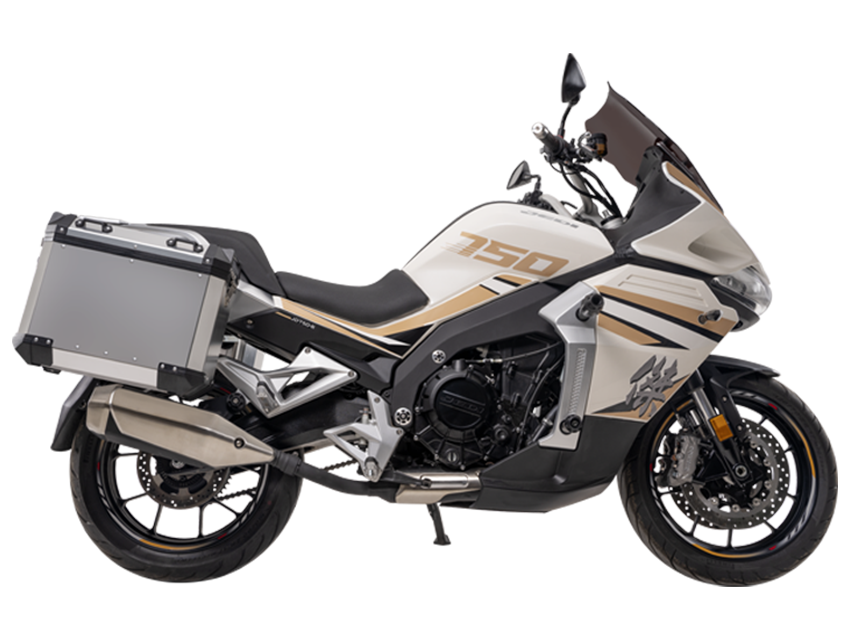

GT750-B（JD750-B）
It is jointly designed by Jedimoto and a renowned Swiss MotoGP R&D company;The chief engineer is Mr. Ludofu from the BMW Motor;
Aluminum chassis and swing arm;
Brembo bradking capier ;
Bosch ABS ,EFI
Send Inquiry
Download Brochure

  • GT750-B（JD750-B）
  • GT750-B（JD750-B）
  • GT750-B（JD750-B）
  • GT750-B（JD750-B）
  • GT750-B（JD750-B）
  • GT750-B（JD750-B）
  • GT750-B（JD750-B）
  • GT750-B（JD750-B）
  • GT750-B（JD750-B）
  • GT750-B（JD750-B）
  • GT750-B（JD750-B）

Model introduction
Technical parameters




Wheel   base (mm)1465
Curb weight (kg)223
Ground Clearance (mm)215
Fuel Tank Capacity (L)18L
Seat Height (mm)780
L*W*H(mm)2210*839*1329
Engine730cc，Inline ,Twin   Cylinder, 4 stroke，8 valve,DOHC
Compression Ratio11.6:1      or 12.2:1
Max. Power (kW/rpm)55/8200  or  60/8000
Max. Torque (N.m/rpm)69/7200  or  70/7000
Max. Speed (km/h)185            or  205
TransmissionConstant,   6 gears
Gear-shifting1-N-2-3-4-5-6
ChassisAluminum   Alloy Casting
Rear Swing ArmAluminum   Alloy Casting
Front Tire120/70R17
Rear Tire180/55-ZR17 or  160/60R17
Break System

Front   double disc Bosch ABS;

Rear singal   disc  Bosch ABS

Brembo Capier system

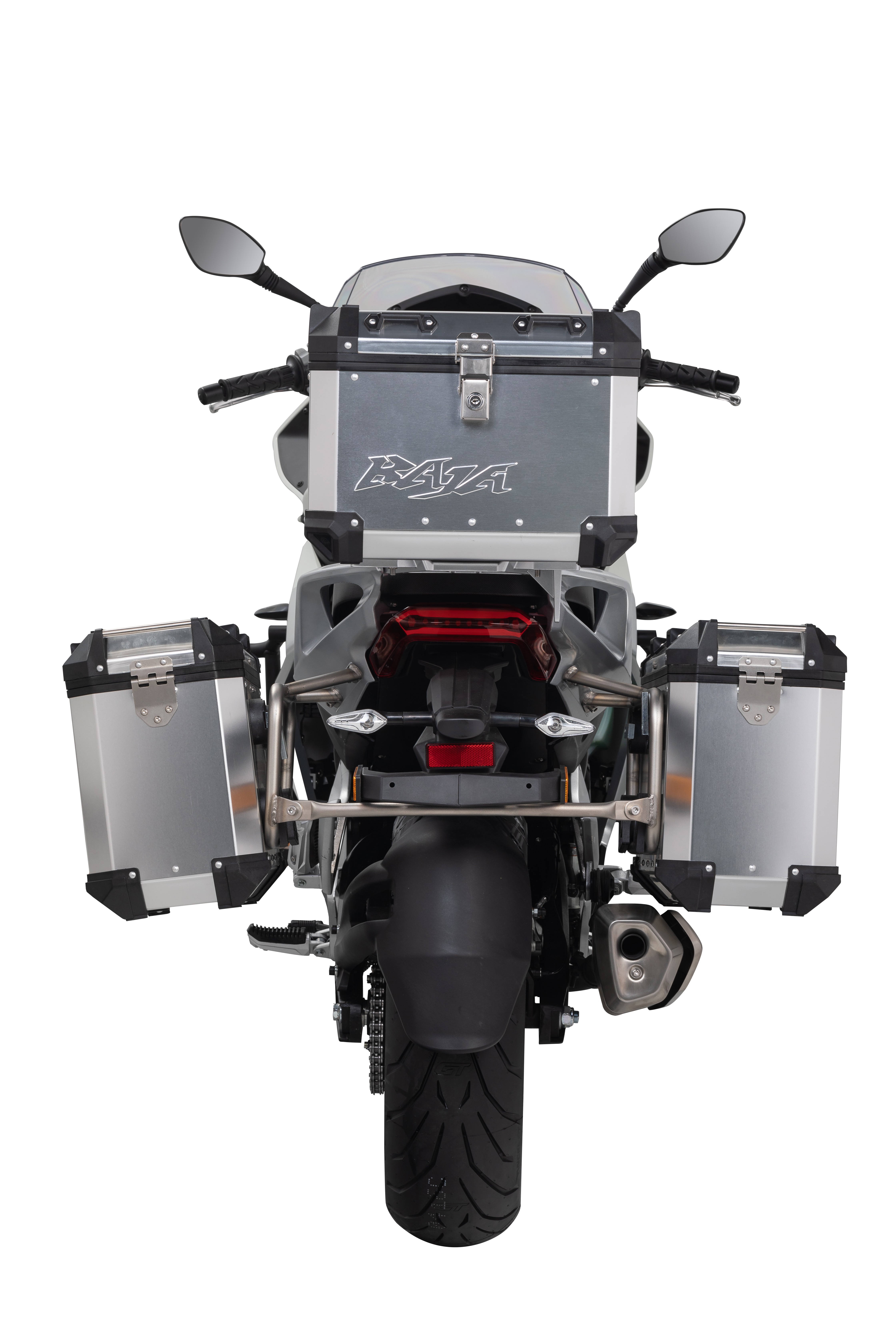

Luggage CaseSide   Case + Rear Case (Police version)
LED LightHead   light / Tail Light / Turn Signal (Police version)
The transmission wayChain
Oil supply wayelectronic   injection
Ignition wayElectric control(Bosch E.F.I)
Start the wayElectric start
Cylinder diameter*Trip83*67.5
Suspension type

Front : hydraulic damping         KYB

Rear: hydraulic damping           KYB
