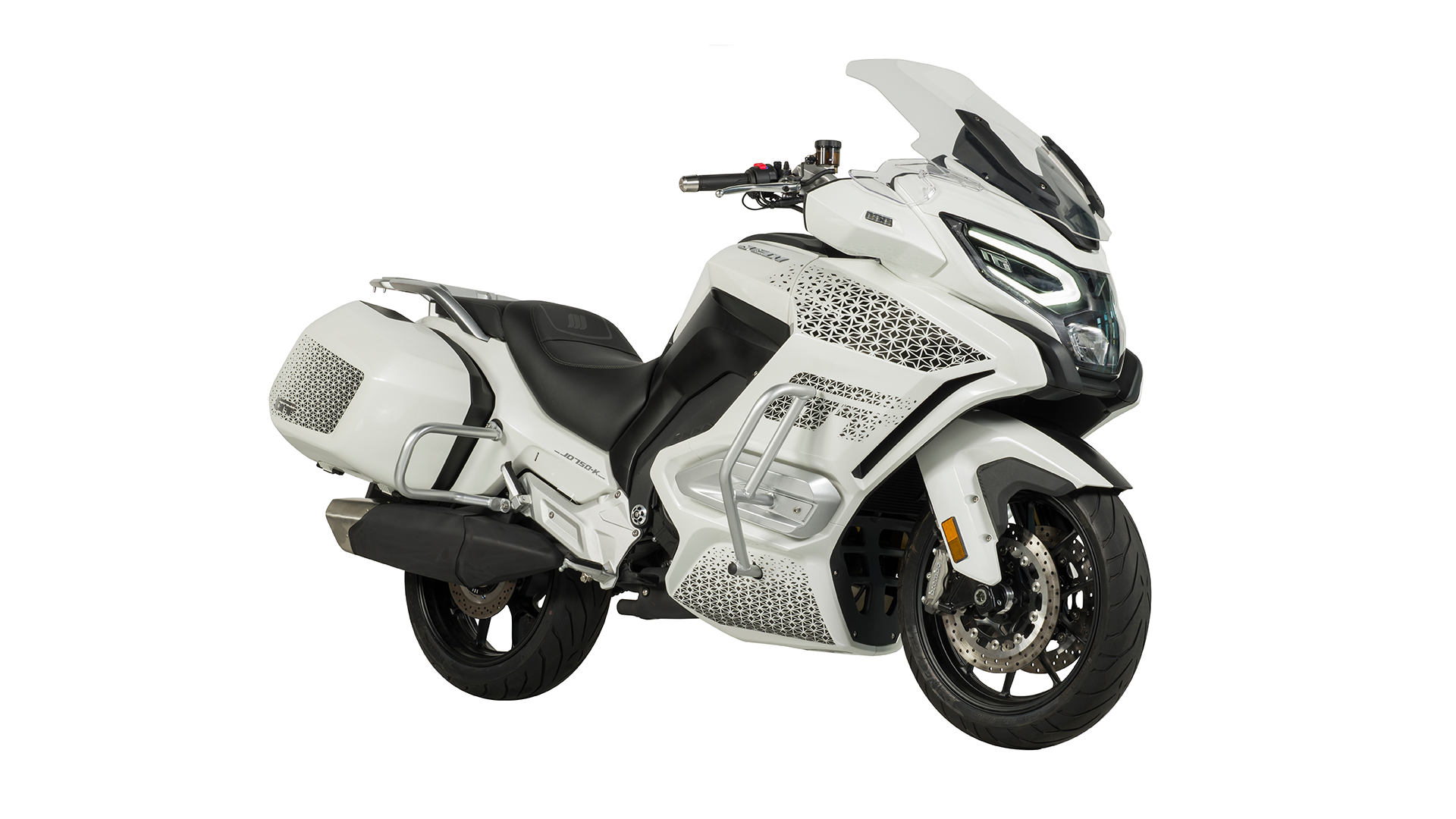

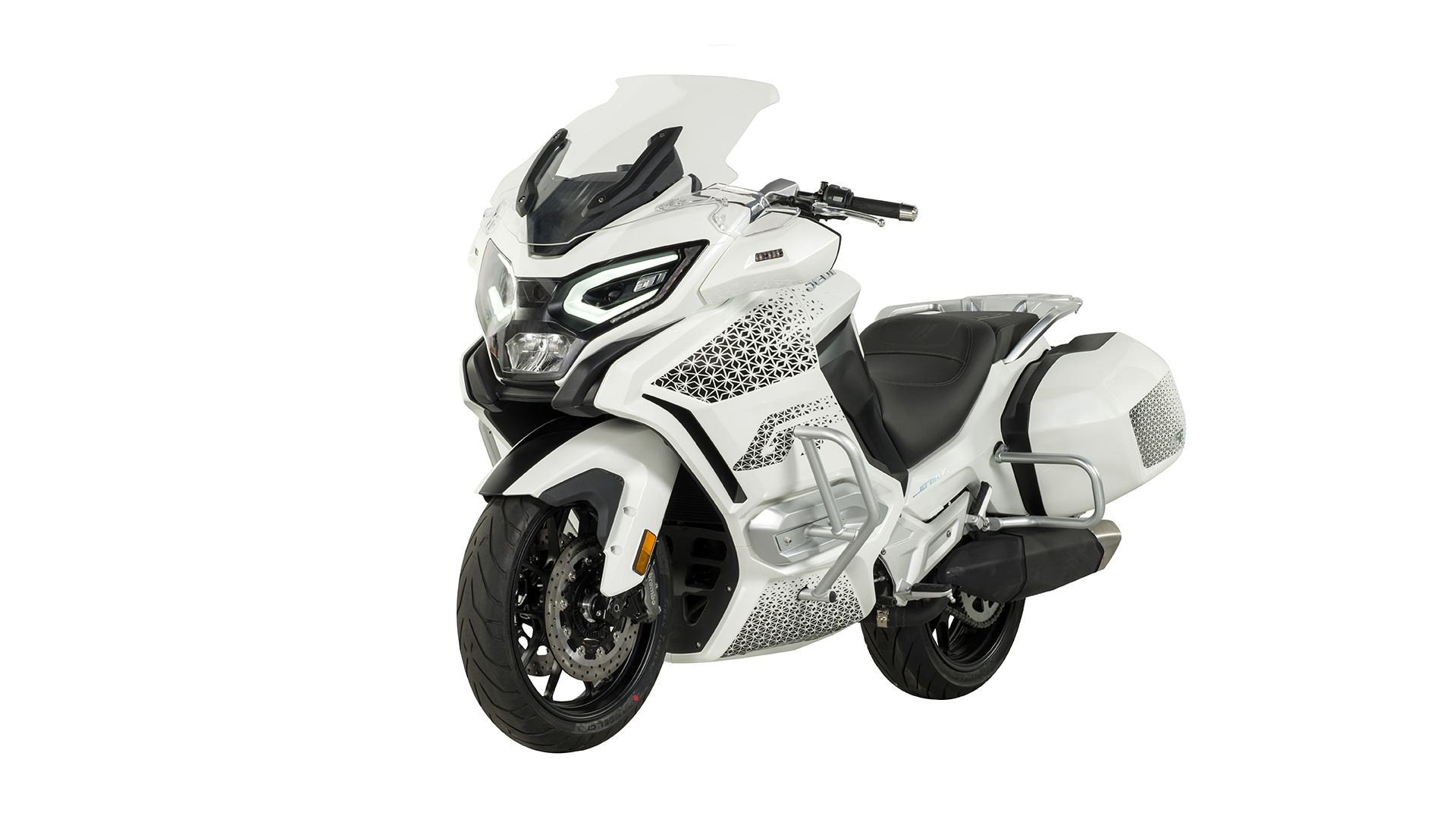

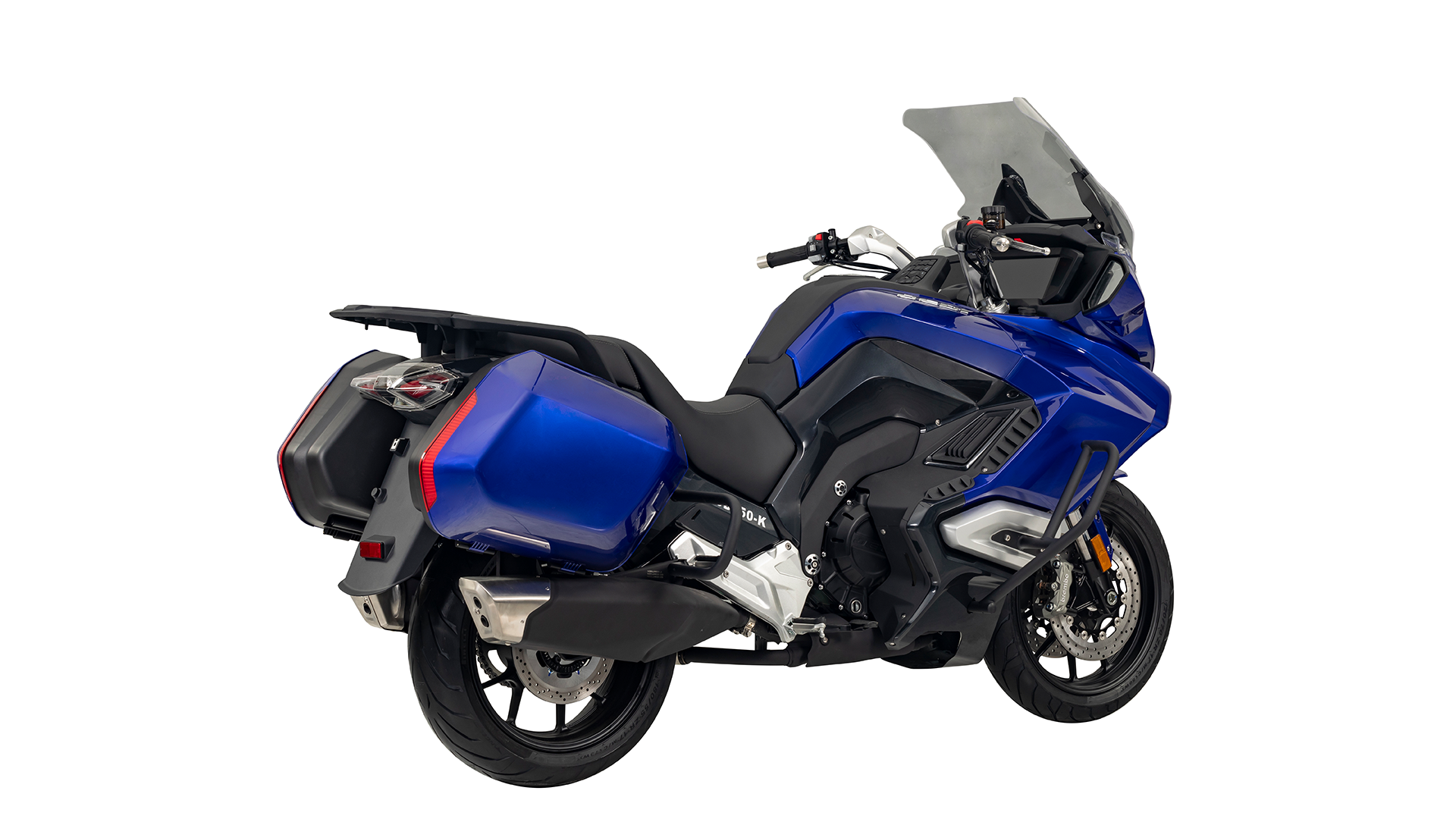

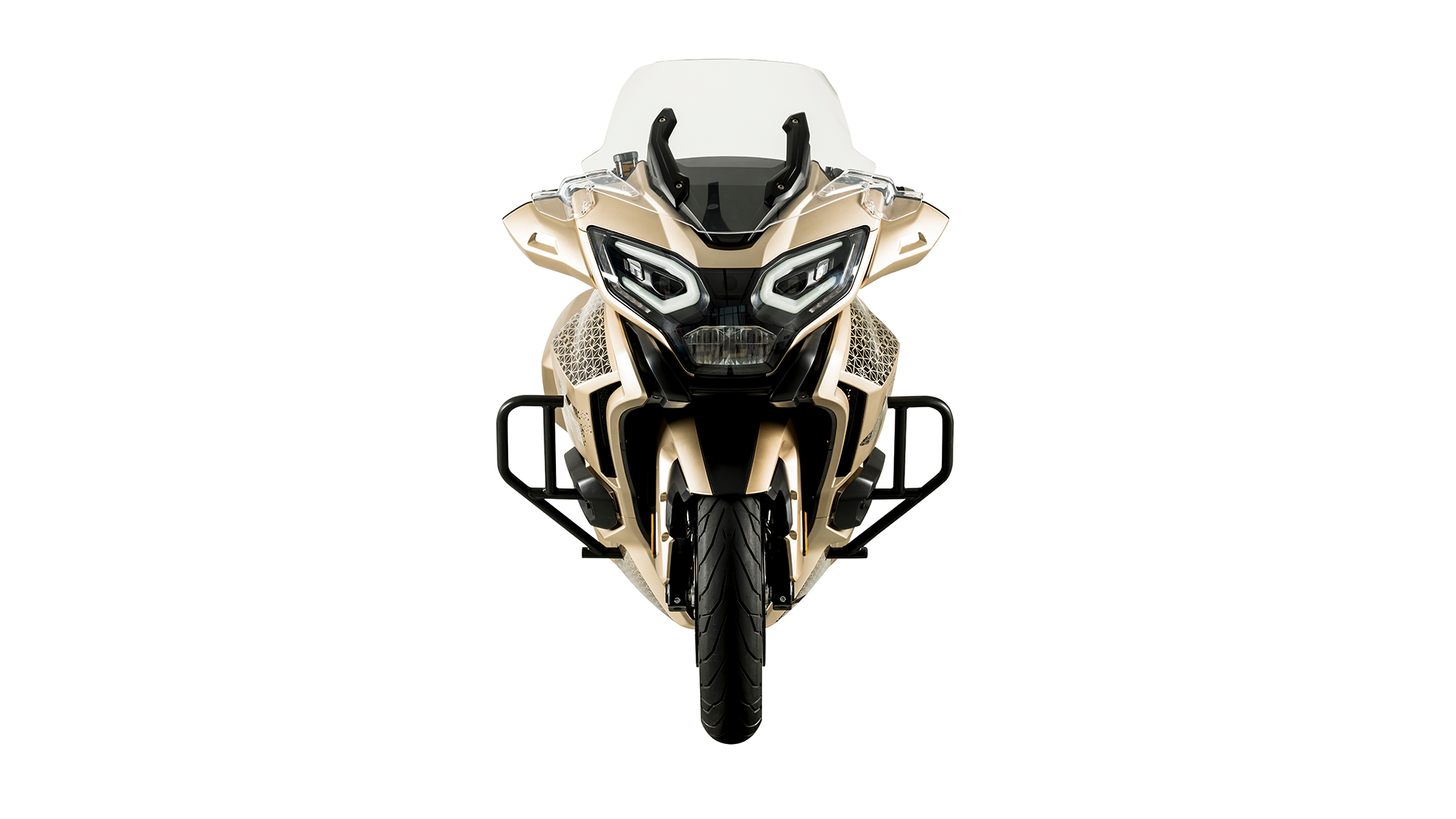

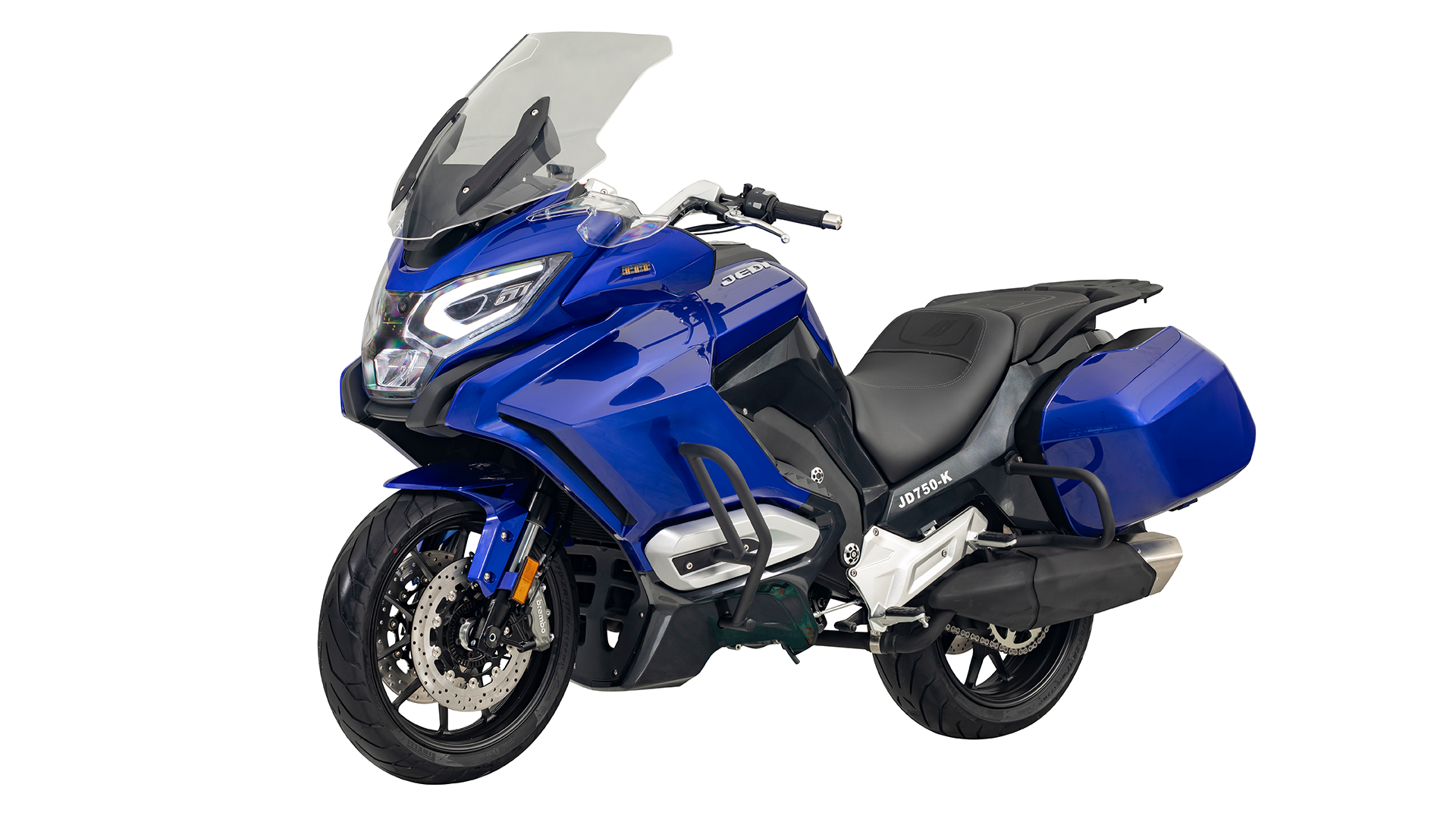

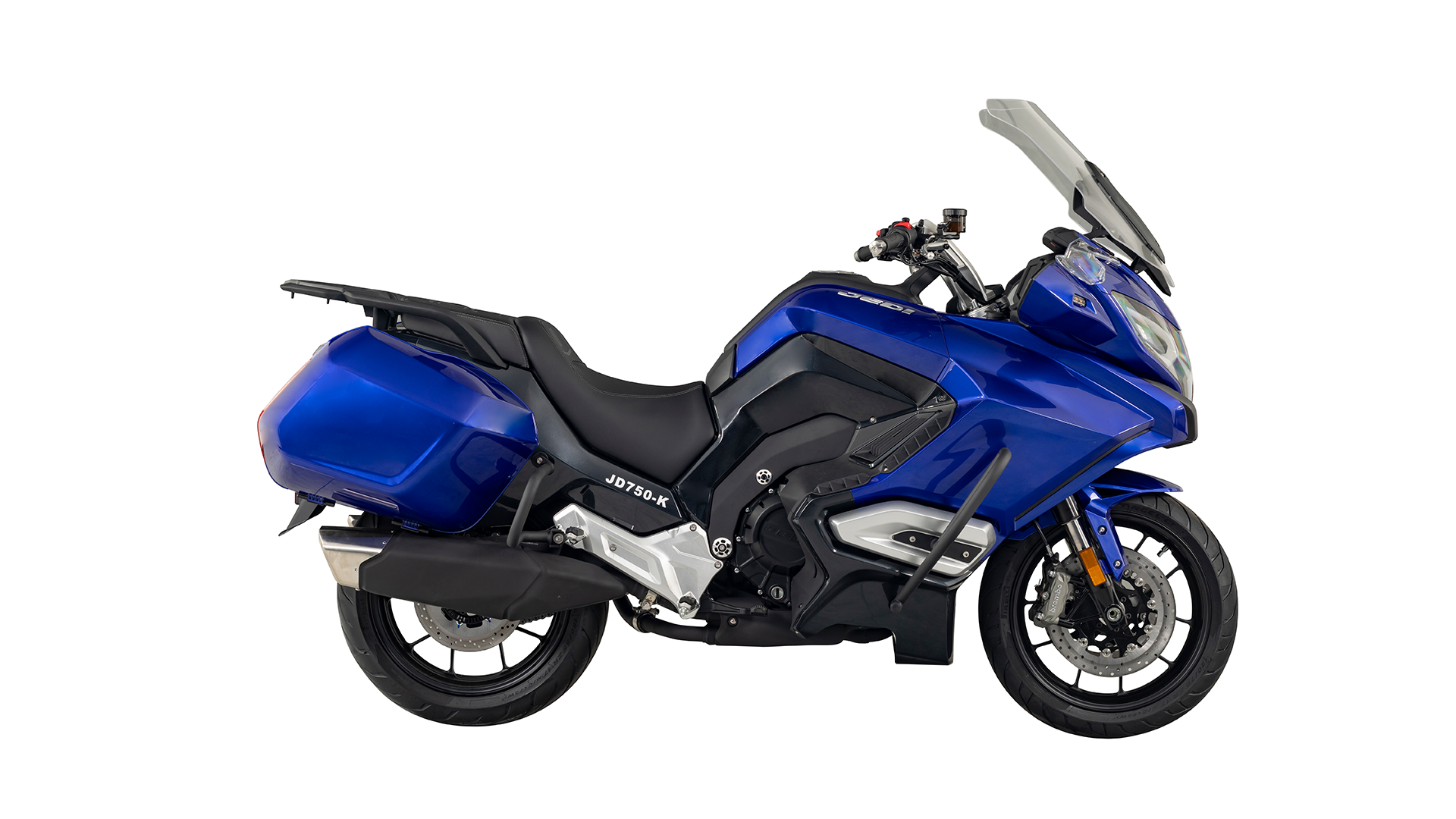

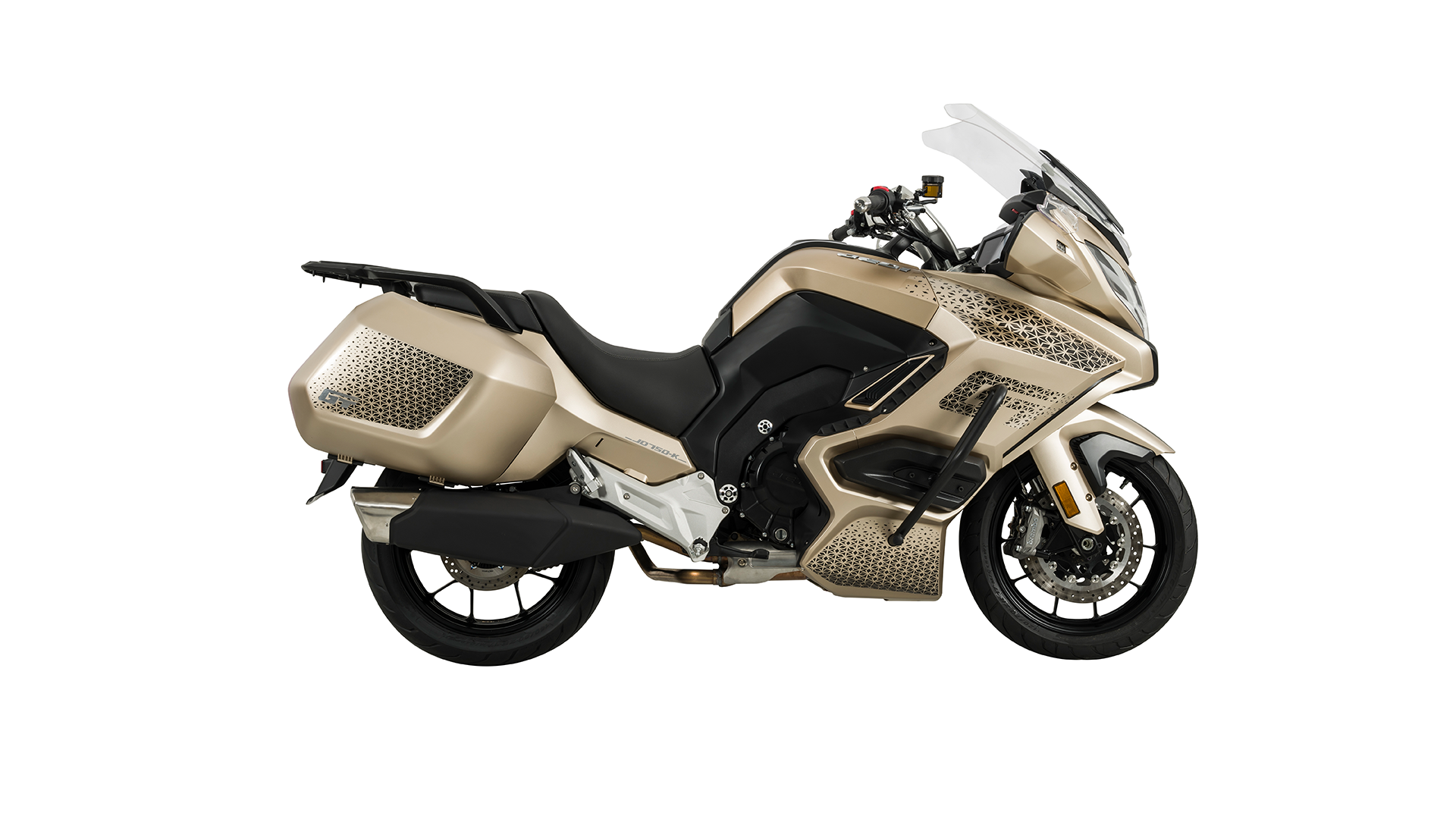

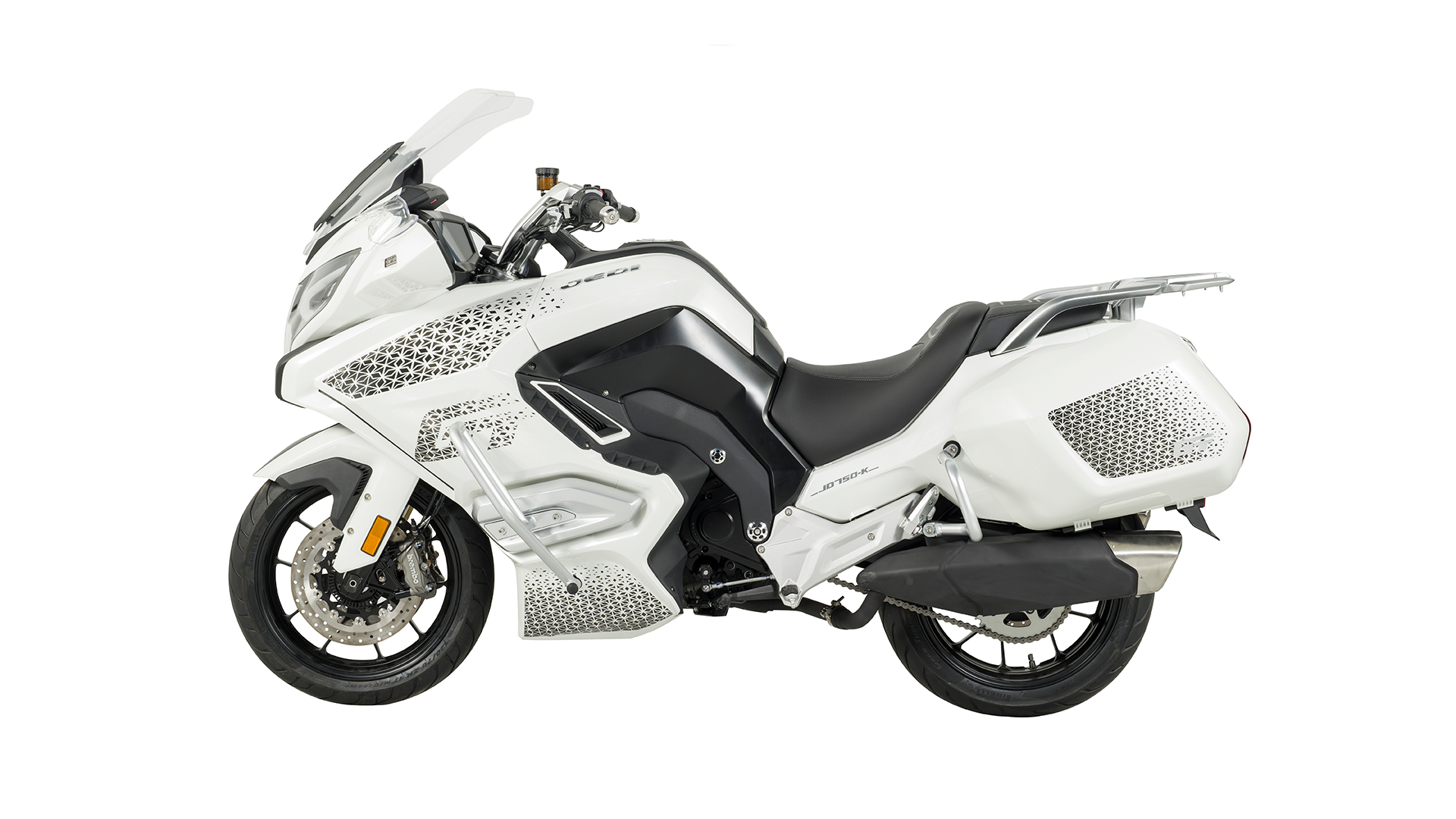

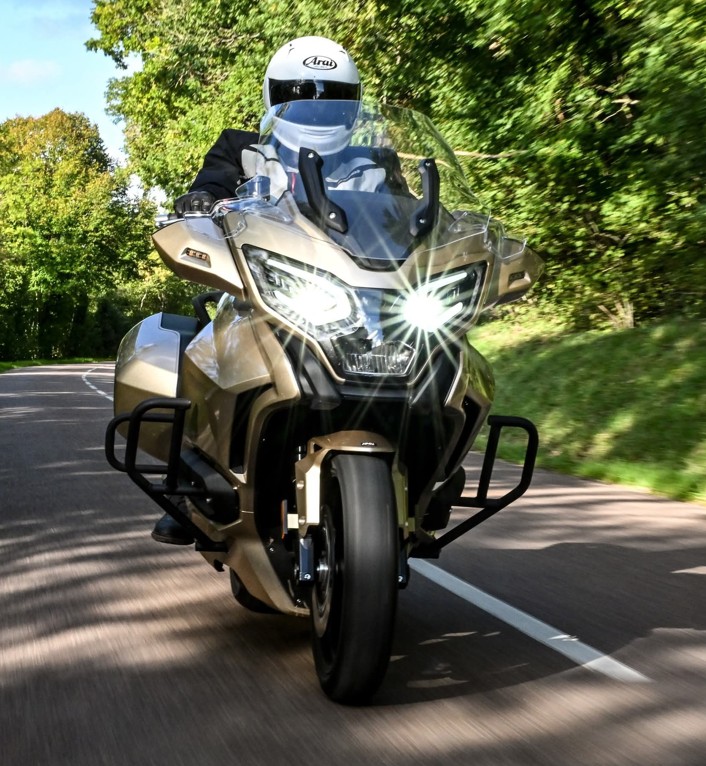

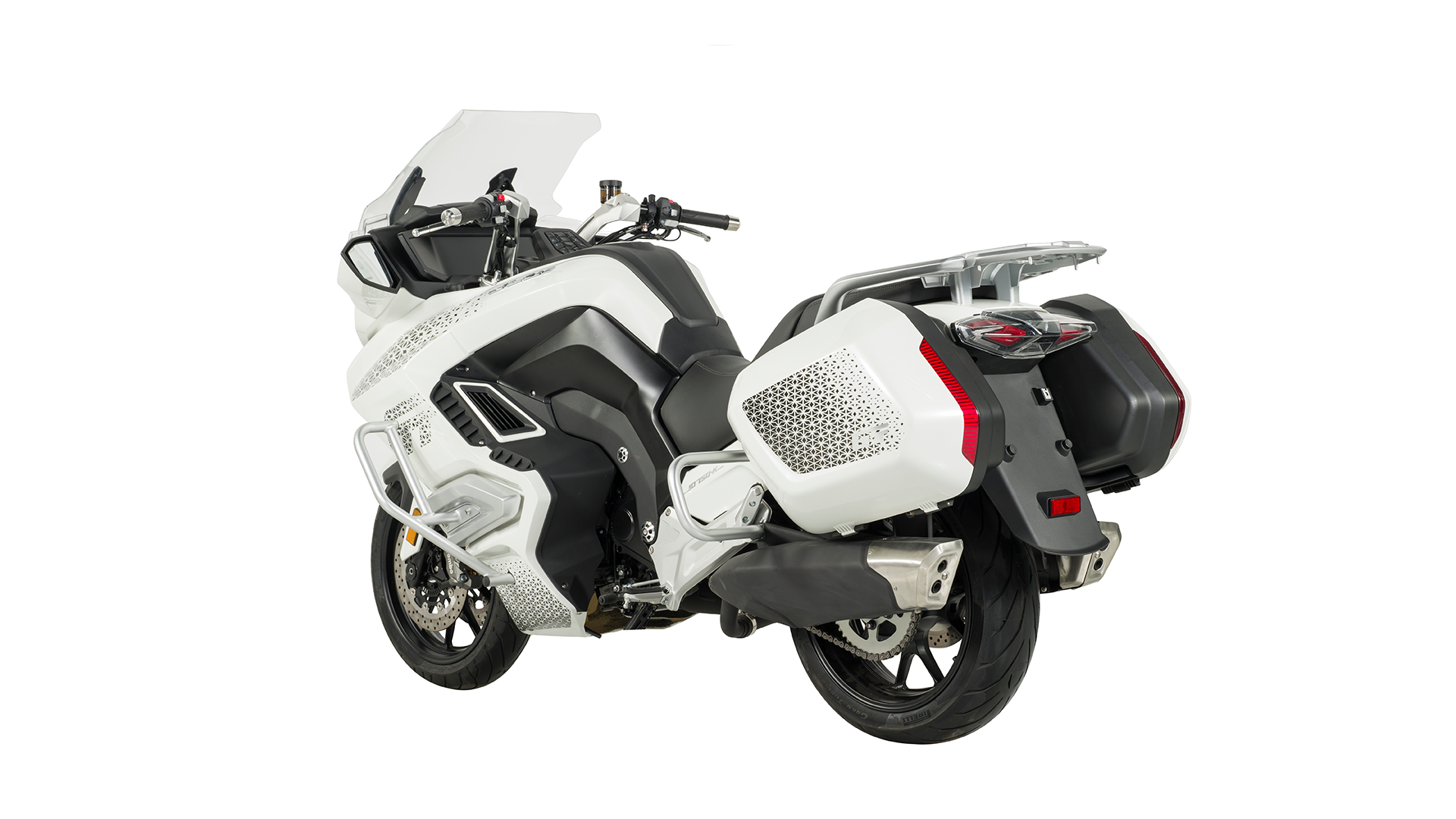

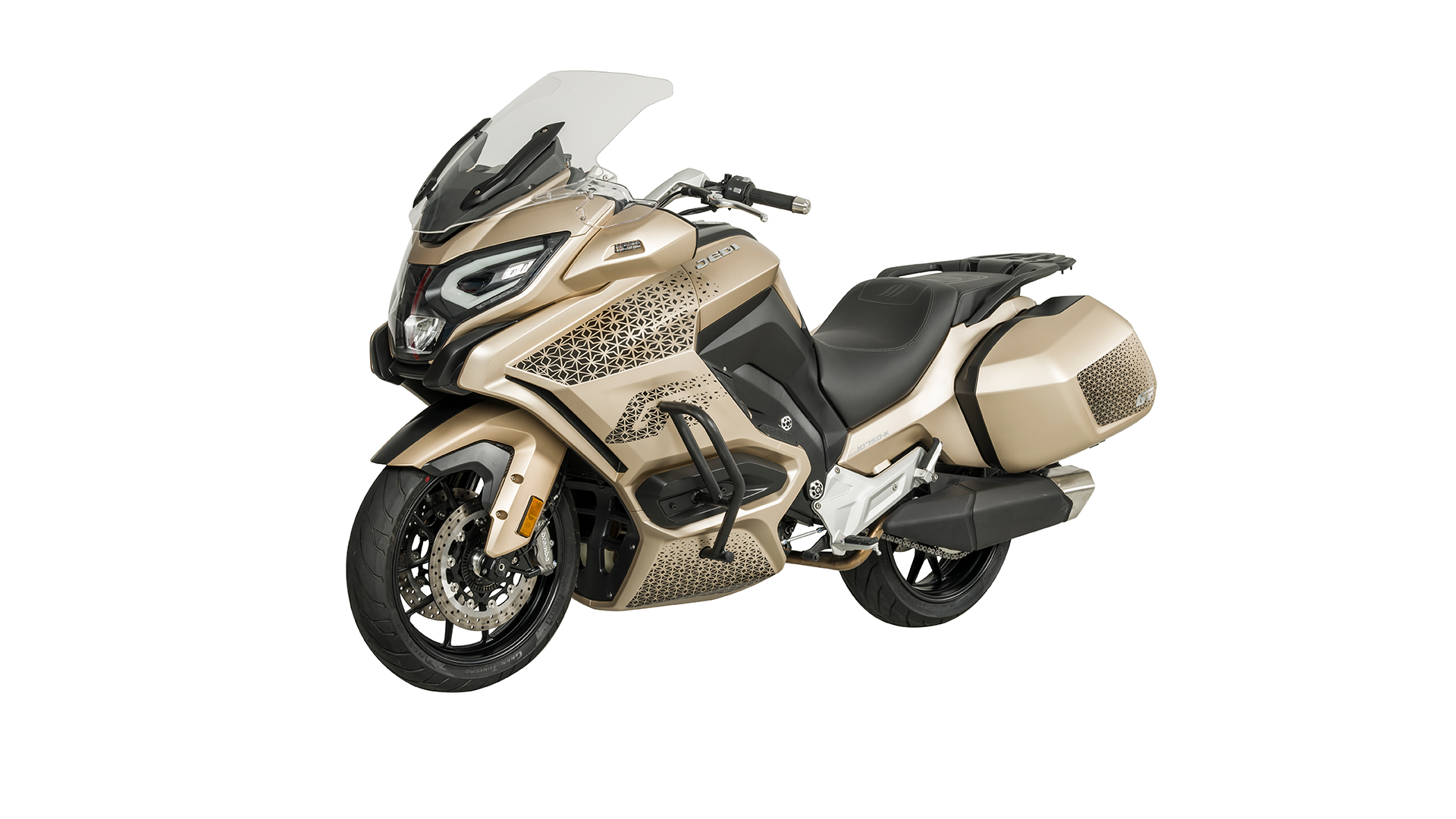

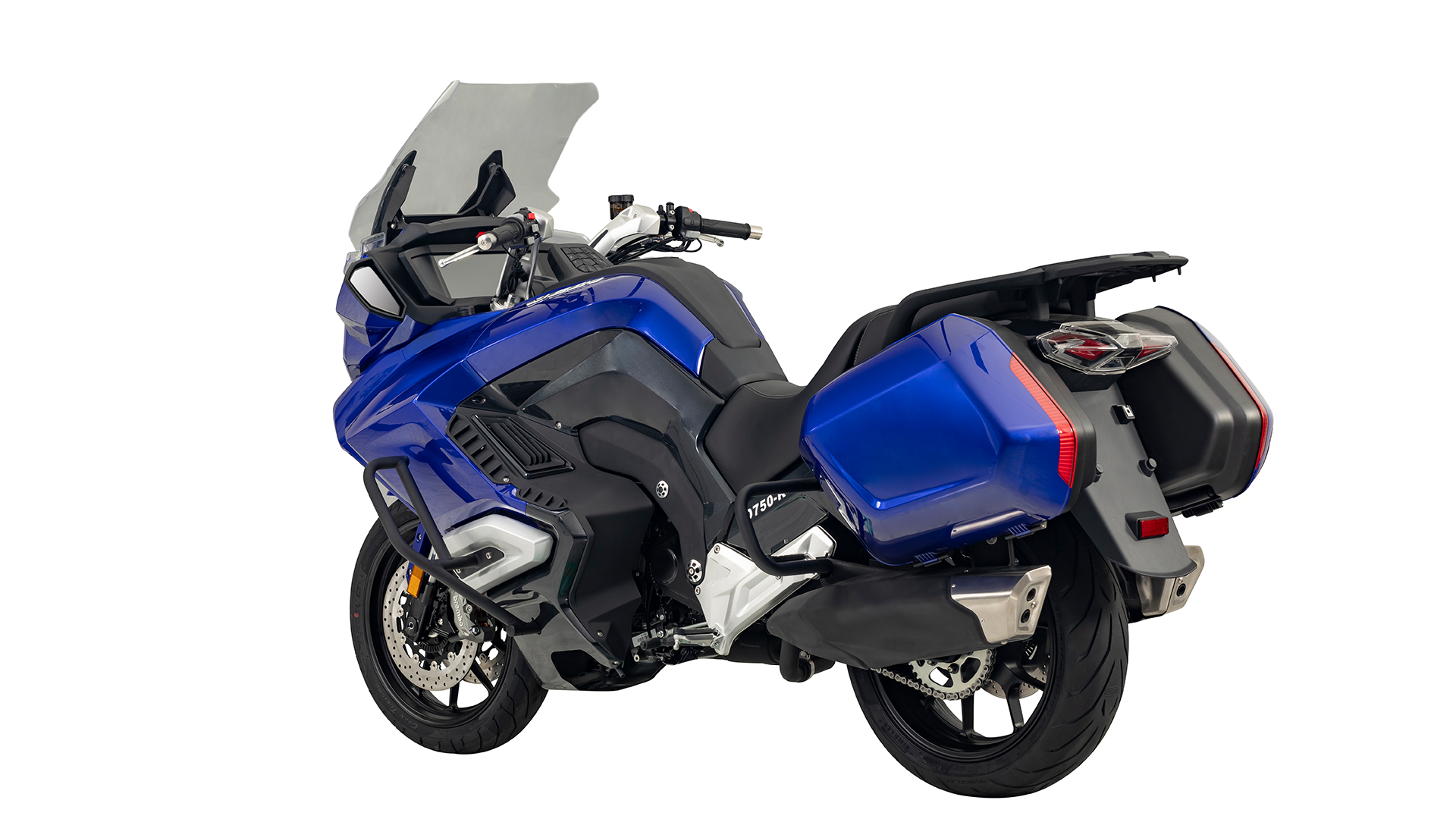

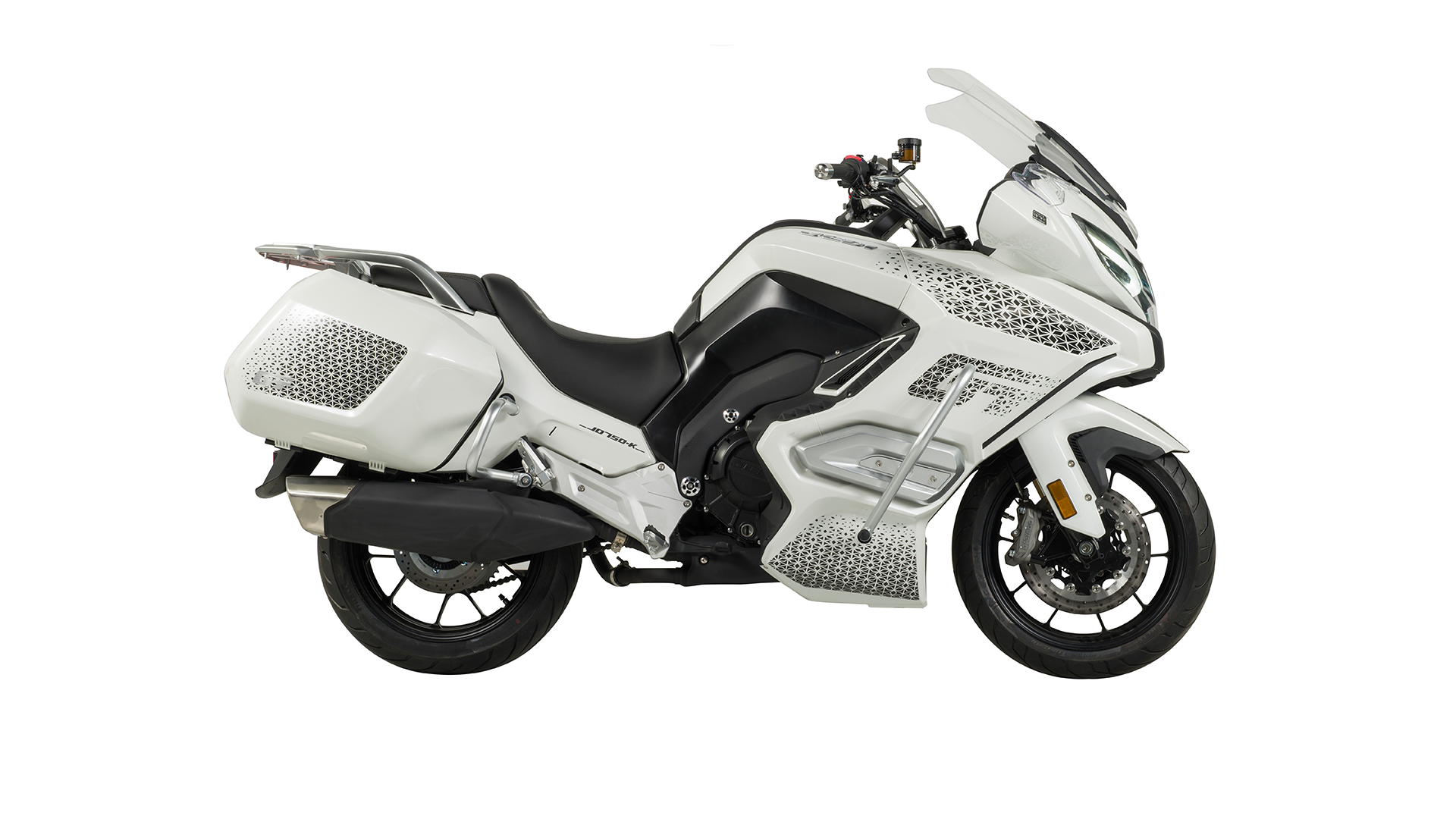

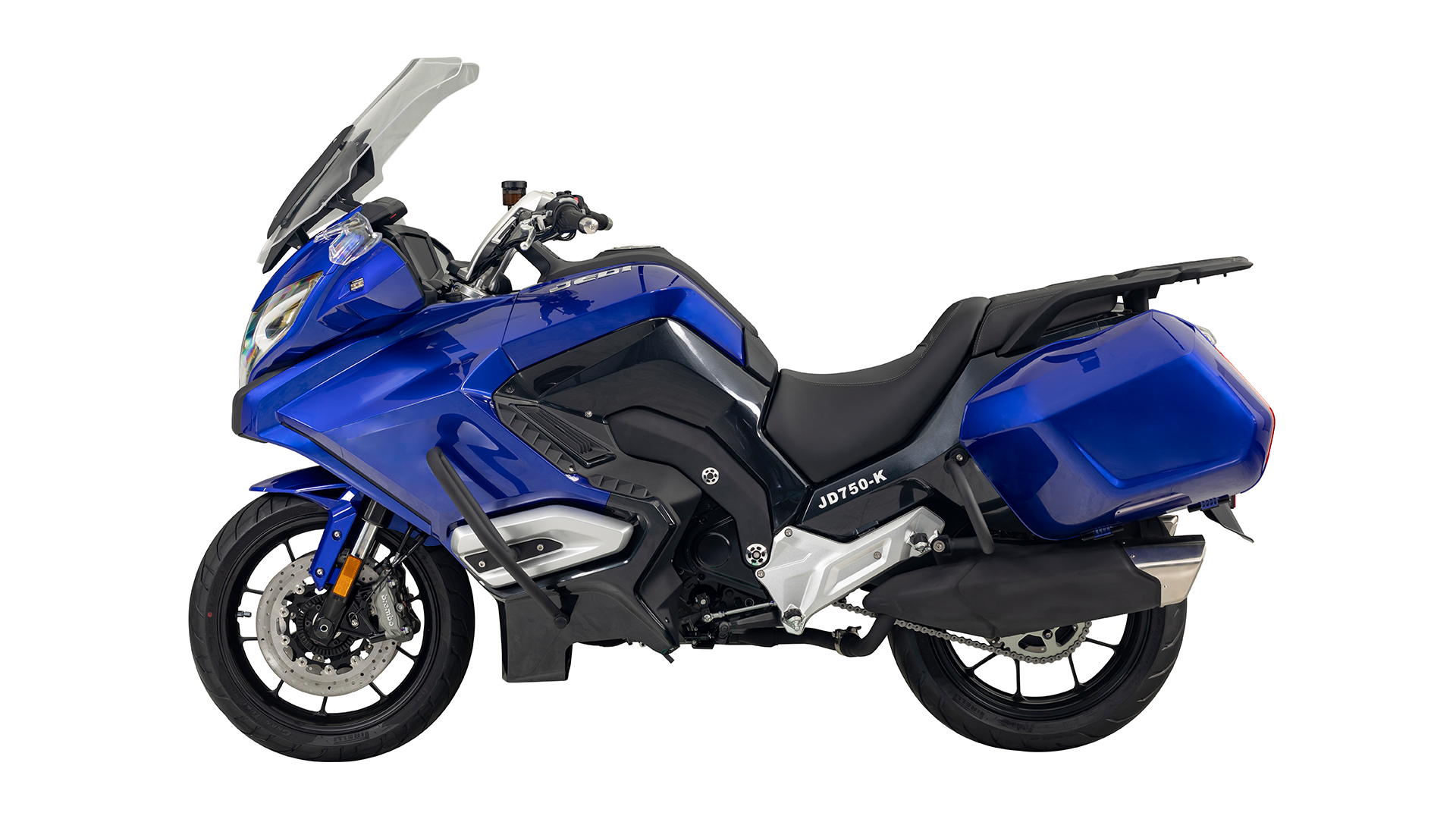

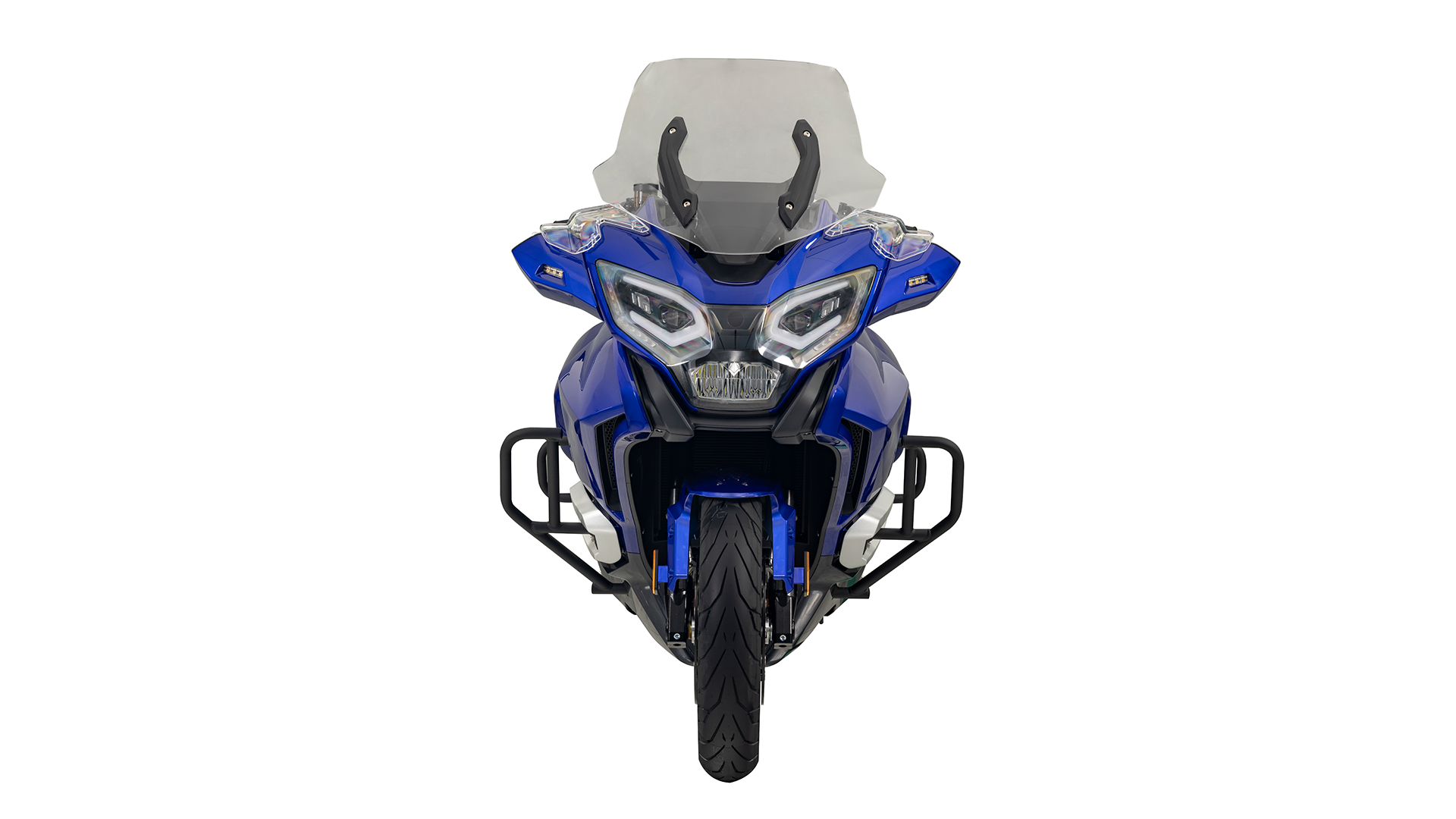

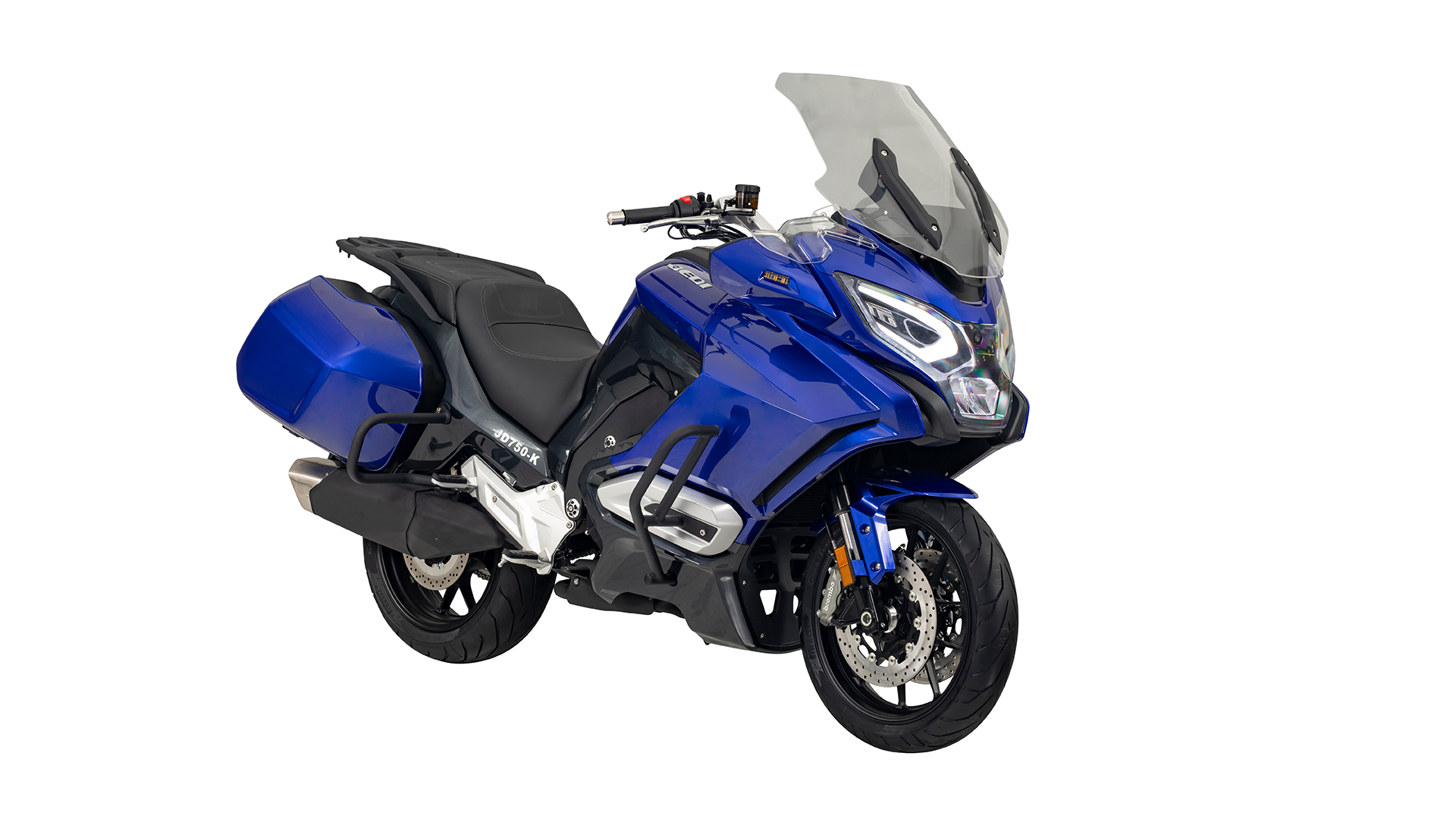

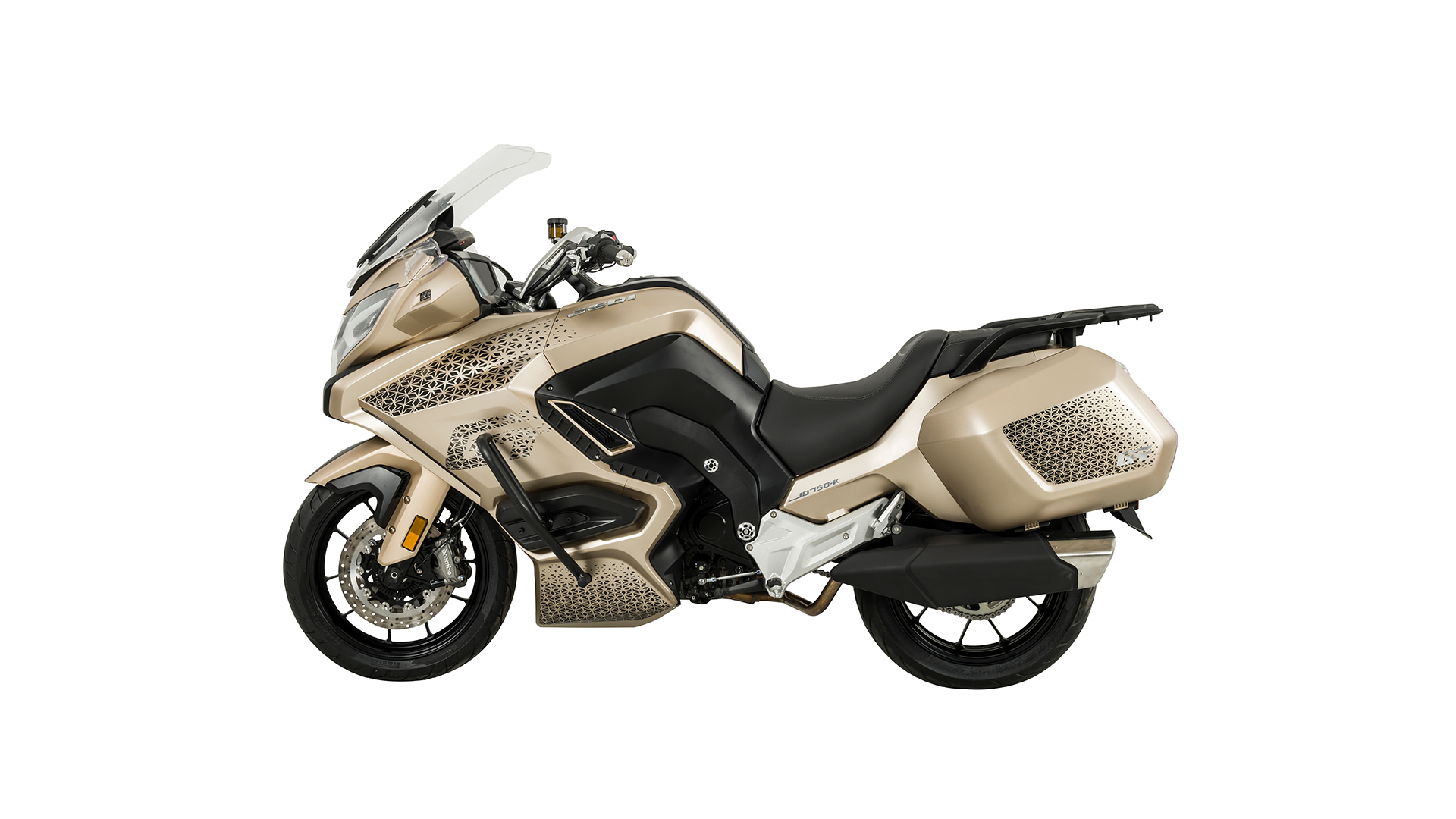

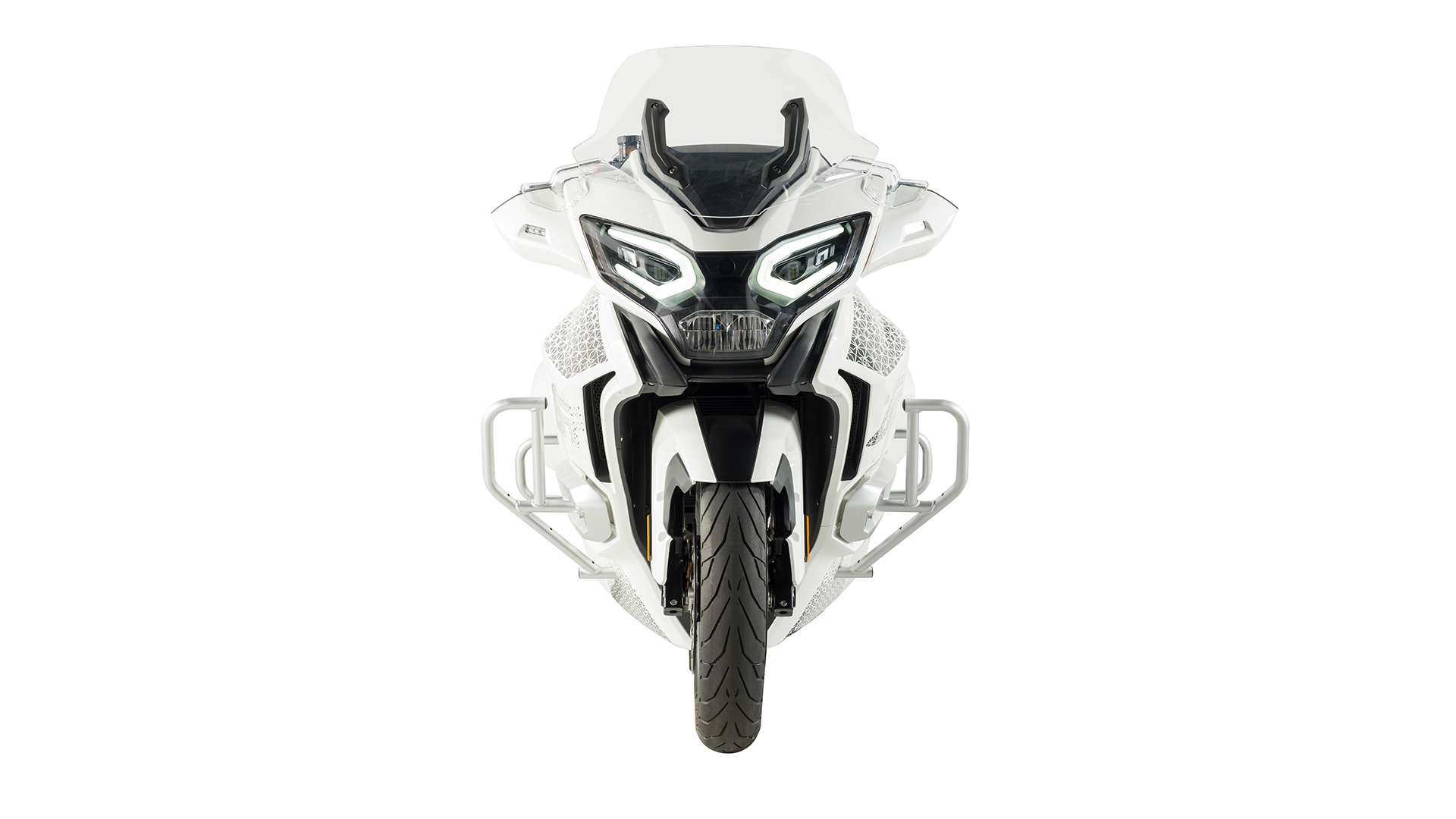

GT750(KYLIN750) Great cruising motorcycle
High performance cruising motorcycle;
Jointly Designed by jedimoto and famous R&D company iItaly;
The combination of Chinese cultural elements and modern technology,lion's head,eagle's eye ,atuo electric equipment with keyless lock/ABS/EFI system
Send Inquiry
Download Brochure

GT750(KYLIN750) Great cruising motorcycle

  • GT750(KYLIN750) Great cruising motorcycle
  • GT750(KYLIN750) Great cruising motorcycle
  • GT750(KYLIN750) Great cruising motorcycle
  • GT750(KYLIN750) Great cruising motorcycle
  • GT750(KYLIN750) Great cruising motorcycle
  • GT750(KYLIN750) Great cruising motorcycle
  • GT750(KYLIN750) Great cruising motorcycle
  • GT750(KYLIN750) Great cruising motorcycle
  • GT750(KYLIN750) Great cruising motorcycle
  • GT750(KYLIN750) Great cruising motorcycle
  • GT750(KYLIN750) Great cruising motorcycle
  • GT750(KYLIN750) Great cruising motorcycle
  • GT750(KYLIN750) Great cruising motorcycle
  • GT750(KYLIN750) Great cruising motorcycle
  • GT750(KYLIN750) Great cruising motorcycle
  • GT750(KYLIN750) Great cruising motorcycle
  • GT750(KYLIN750) Great cruising motorcycle
  • GT750(KYLIN750) Great cruising motorcycle

Model introduction
Technical parameters

Journey is life,Thankful for every force that rushes toward passion.

Jedimoto GT750 Carries you to the dream far!

It was jiontly developped by jedimoto and italian R&D Company for the journey

Bosch ABS +TCS system,E.F.I ,Brembo brakes capier

24L fuel tank ,maxrange 600Km

Electric control windshield lifting and sidebox  opening and closing

Electric heated handlebars and seat

Selected as the Model of the Year by the Chinese motorcycle industry in 2022



Engine Type730cc,Inline twin cylinder,  four stroke, Liquid-cooled, DOHC, eight valve
Bore x Stroke（mm）φ83×67.5
Compression   Ratio11.6:1
IgnitionECU Controlled   ignition
Transmission1-N-2-3-4-5-6
Final DriveChain
Drive Sprocket520-15teeth
Clutch TypeWet multiple plate   Sliding clutch
Maximum   Power（KW（r/min））A3 55/8200;  A2 34/7900
Maximum   Torque（N.m（r/min））A3 68/7100;  A2 59/4600
Max speed（km/h）A3 180; A2 150
Fuel typeUnleaded gasoline 95+   (RON)
Lubrication   MethodPressure-Splash
Lubricant TypeSN 10W-40/SN 5W-40
Spark PlugCR8E
Chassis TypeAluminum alloy double   SPAR  frame
Suspension/Frontkyb upside-down   front fork, hydraulic type,adjustable tension force(L),
adjustable compression force(R),  adjustable spring preload  φ41
Suspension/Rearkyb Multi-link   middle multi-stage adjustable hydraulic type,  adjustable spring preload
Brakes/Front2*∮398 Disk
Brakes/Rear∮260  Disk
Tires/Front120/70ZR17
Tires/Rear180/55ZR17 or   160/60ZR17
SwingarmAluminum alloy double   fork rocker arm,cast
Product Size   LxWxH（mm）2077×875×1150
Seat   Height（mm）780
Wheelbase（mm）1464
Rake (Caster   Angle)25
Trail118
Min. Ground   Clearance215
Fuel Capacity24L
Light SystemLED
Speedometer12.3’TFT with mobile mirror nagative
USBquick charge
ABSBOSCH ABS
TCSoption
BCMintegrete centeral control system
EmissionEURO5+   GOC
Battery12V 14Ah or 12V 18Ah or 12V 20Ah
Gross   Weight(kg)276
Packing Size(mm)2190*1040*1200
